FU_

V1

V11
25kW
V19
600kW
BACK TO FREE COOLING UNITS  »
dasdas PERFORMANCE
WARRANTY
dasdas EFFICIENCY
GUARENTEE
dasdas LOW NOISE
LEVEL
dasdas INCRESED
SURFACE
dasdas TREATMENT
READY
dasdas INTEGRATION
MODULES
CONFIGURA Download PDF
Product details in PDF format not yet available

Main features

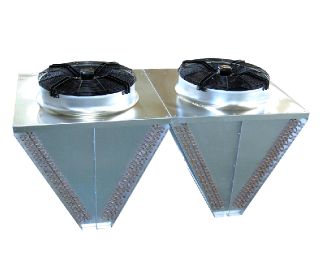

  • V-shaped construction
  • Single fan row
  • Single coil
  • Vertical air flow
  • Electrical and control accessories, integrated hydraulic fittings and components related to the structure are completing our offer range
  • Standard heat exchanger execution with aluminium fins and copper tubes in single or double circuit execution
  • AC and brushless EC fans with 630, 710, 800, 910, 1000 mm diameter, for 50 Hz or 60 Hz of grid frequency
  • High efficiency fans with high, medium, low speed, reduced speed and variable speed versions with the related sound levels: medium, confort, low, ultra-low and balanced
  • Fan section with intermediate panels guaranteing a homogenoeus air flow preventing turbulences between fans
  • Fan cover plates made of one piece
  • Frame made of welded square section stainless steel pipes (*depending on the serie)
  • Construction and cover panels made of aluminium
